Description
iFlash-SOLO
SDXC Adapter for the iPod
For those seeking solid state storage capabilities for their iPod, the iFlash-Solo allows you to install and use SD/SDHC/SDXC cards.
With much lower power consumption than the original Hard drive, longer runtimes and quicker user interface.
Simple plug & play installation – iPod works as before just much better !

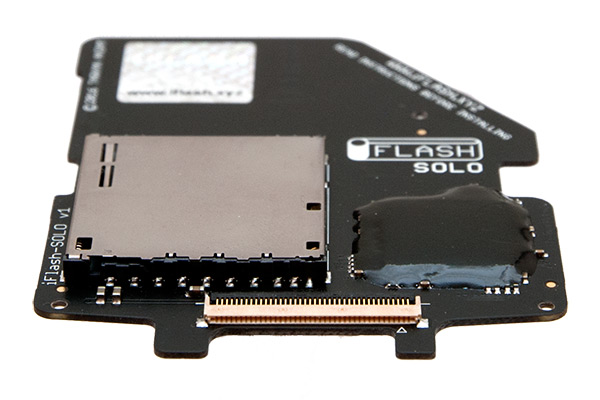

iFlash-Solo Zif Connector

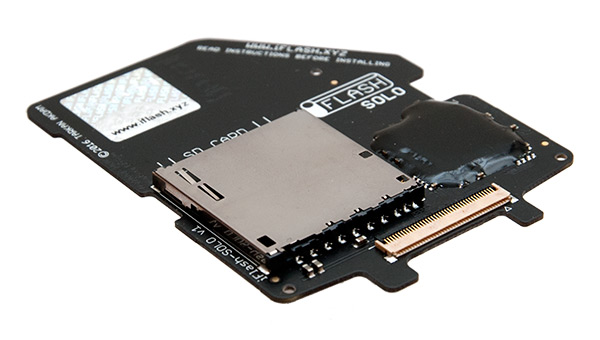

iFlash-Solo Angle View

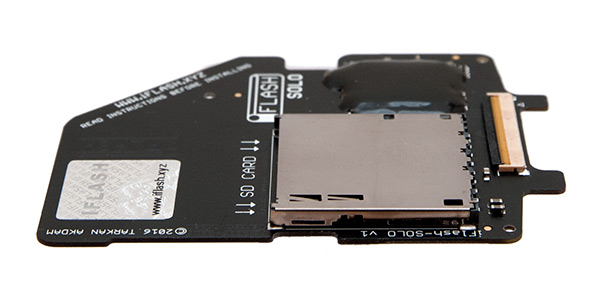

iFlash-Solo Side View
Features
- Thin profile – thinner than the original HDD
- DDK Zif Connector – Gold plated and perfectly matches the Apple HDD Ribbon
- Yamaichi SD Connectors – High quality Japanese made SD Connector
- SD / SDHC / SDXC / UHS-1 U1 & U3 Card Compatible
Compatibility
IMPORTANT: Read iFlash Compatibility Chart for iPod model specific limitations
- iPod 5g Video 30Gb, 60Gb
- iPod 5.5g Video 30Gb, 80Gb
- iPod 6g Classic 80Gb, 120Gb, 160Gb *Limit of 128Gb with SD cards
- iPod 7g Classic 160Gb (late 2009)
- For fitting in to 4g iPods you will require an iFlash converter
Installation
Installation Guide (click on images for detailed instructions)
-
-

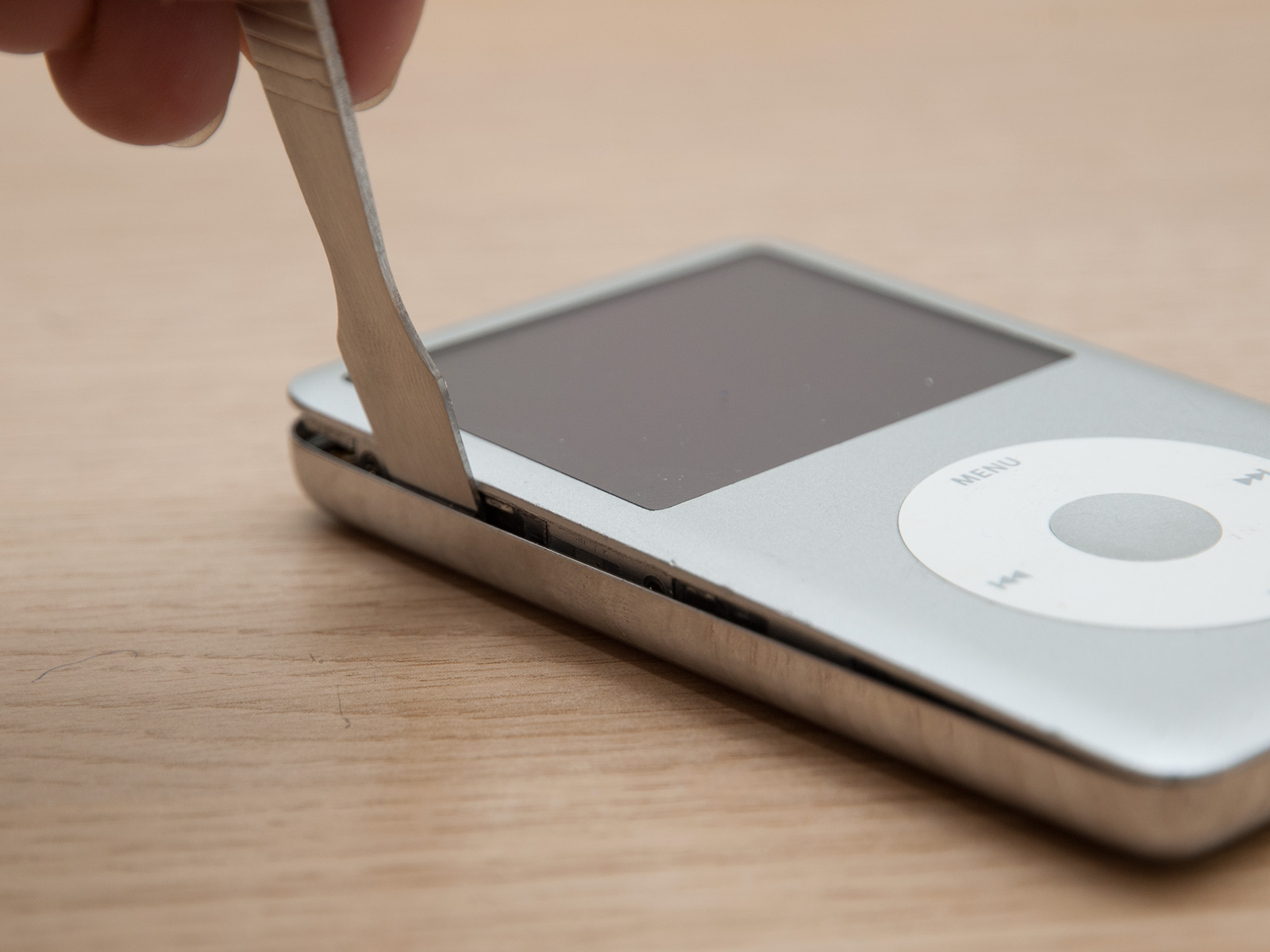

Using suitable tools, release the holding clips, making your way around the case till it opens. I suggest watching some iPod opening videos on the internet.
Open iPod
-
-

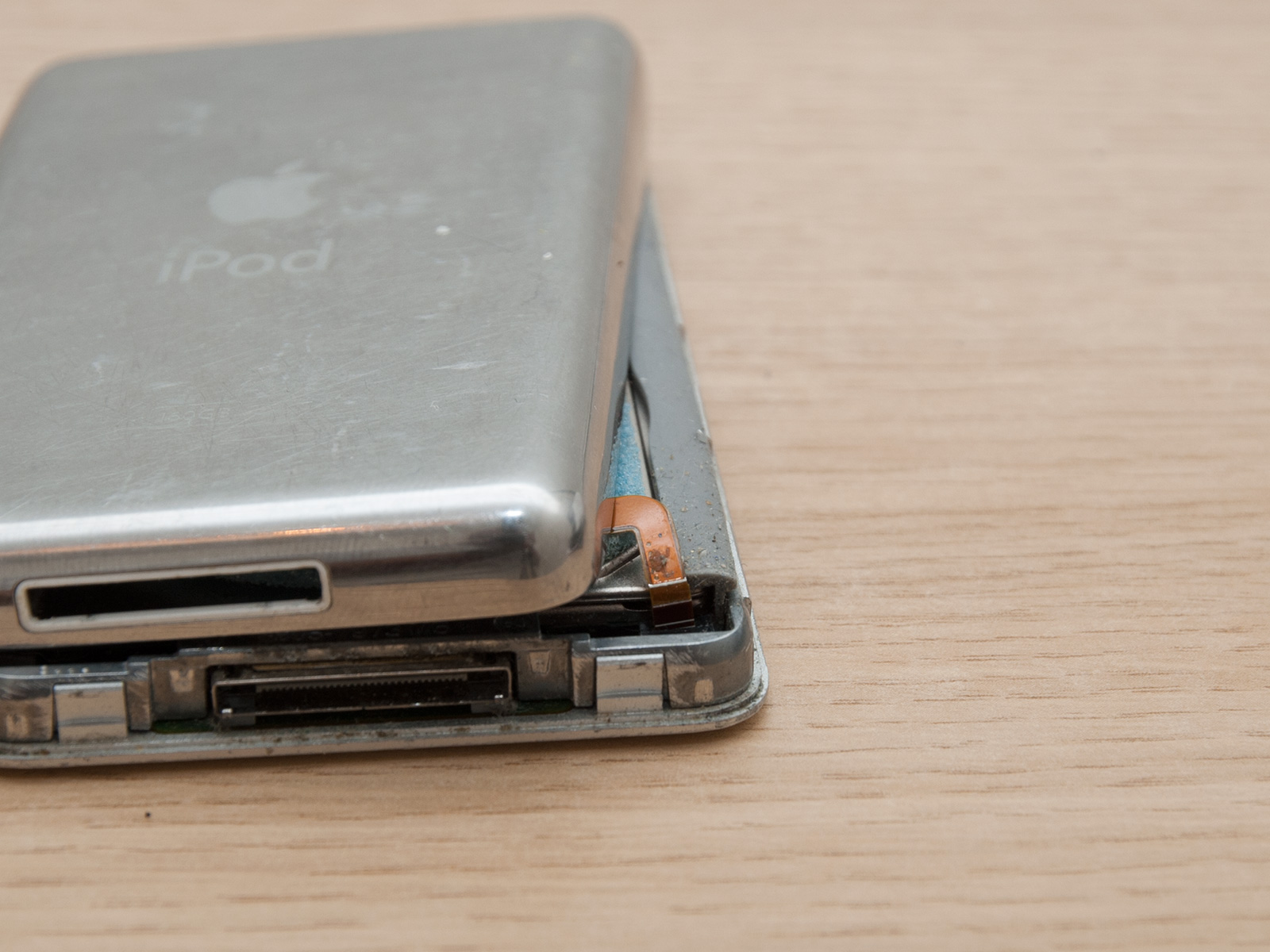

Before pulling the case apart, release the battery cable – lift the black lock bar -or- gently using even pressure pull up the battery ribbon away from the connector.
Release Battery cable
-
-

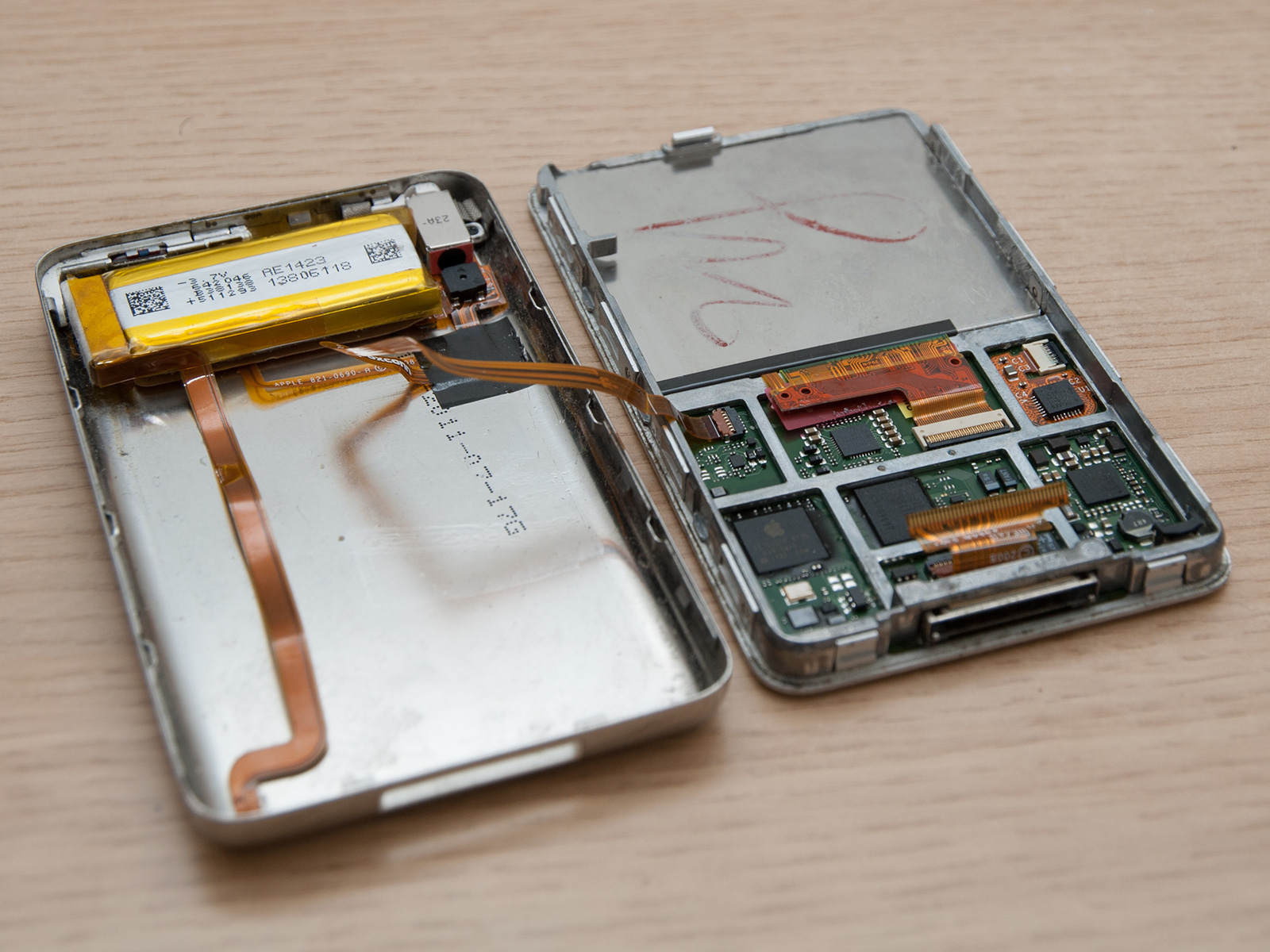

Rest the front and back side by side, be careful to not cause too much stress on the headphone ribbon.
Opened up
-
-

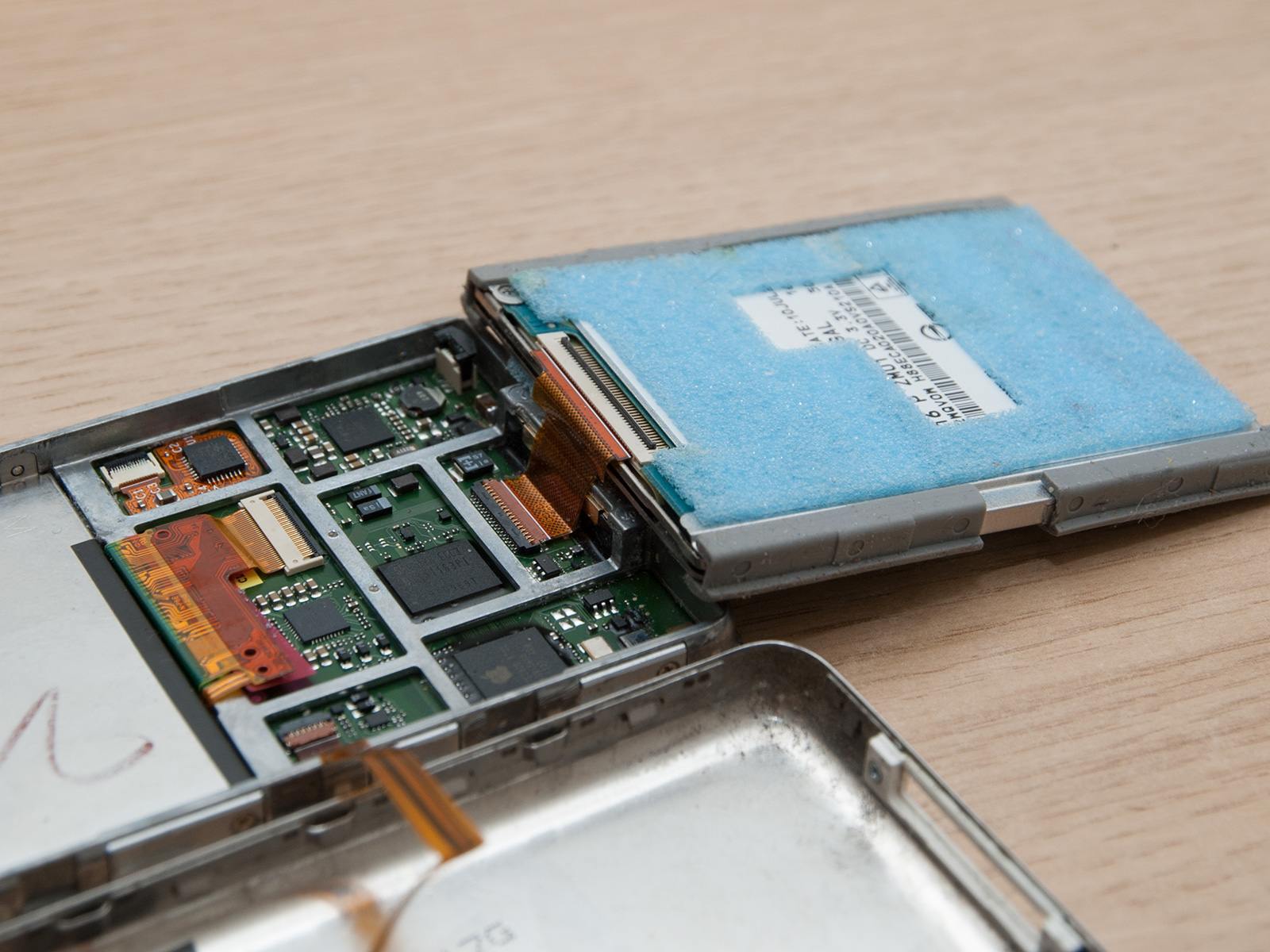

Lift and flip back the hard drive. Gently lift the black bar to release the ribbon from the HDD.
HDD removal
-
-
Remove all rubber bumpers and strips from the iPods if any remain after the HDD is removed. iPod is ready to accept the iFlash board.
Ready for iFlash board
-
-
Insert and lock the SD card in to the iFlash-Solo. Make sure the black bar has been raised on the Zif connector.
Install SD card
-
-
Install iFlash-Solo in to the iPod, make sure the ribbon is fully home, then lock the black bar down.
Install in iPod
-
-

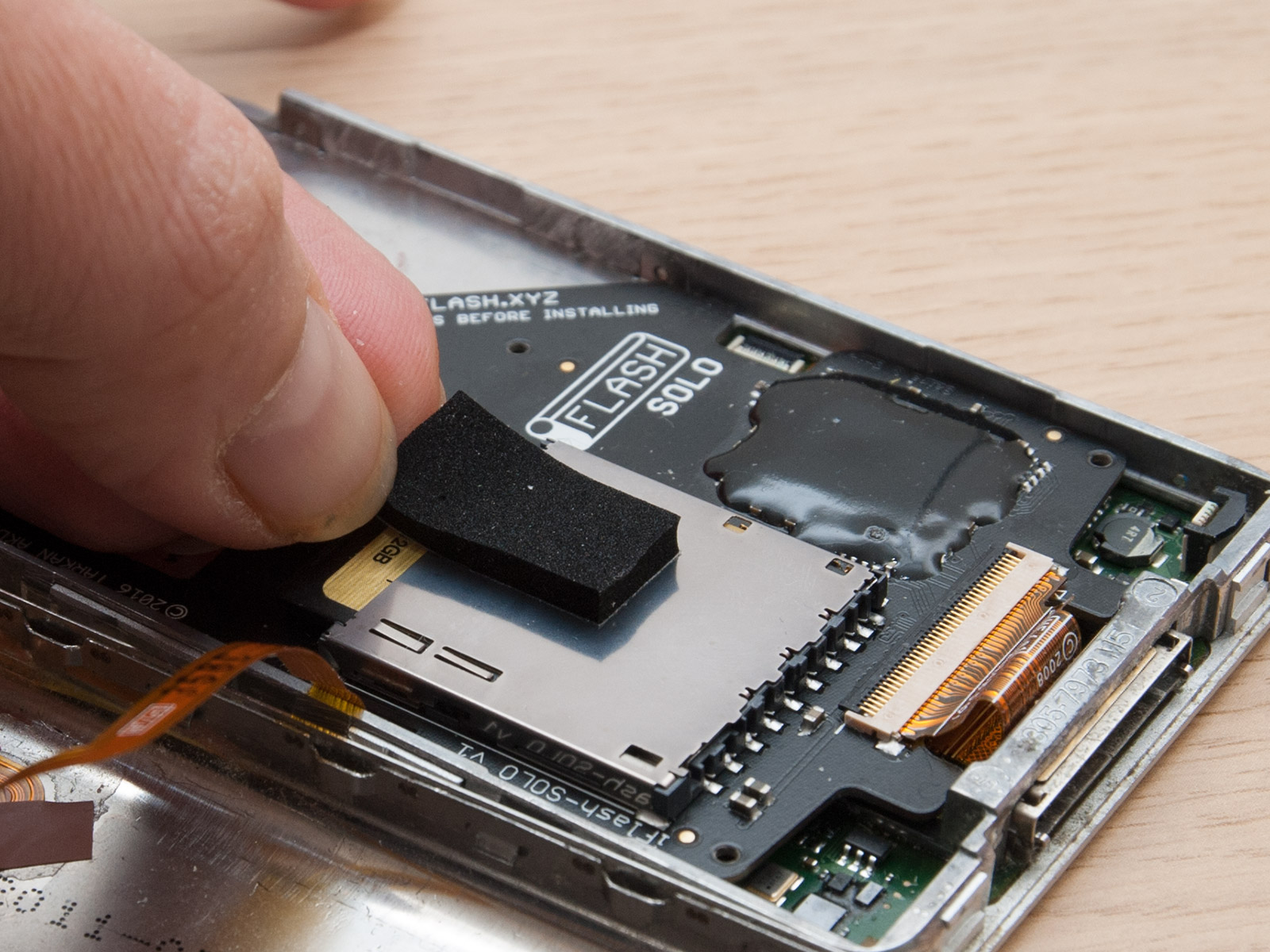

Attach Foam Pad(s) on top of the SD connector, overlap on to the SD card – this will secure the SD card from releasing from the iFlash-Solo. Use two pads if fitting in to a thick caseback.
Attach Foam Pad(s)
-
-
Installation is complete, ready for the iPod to be closed.

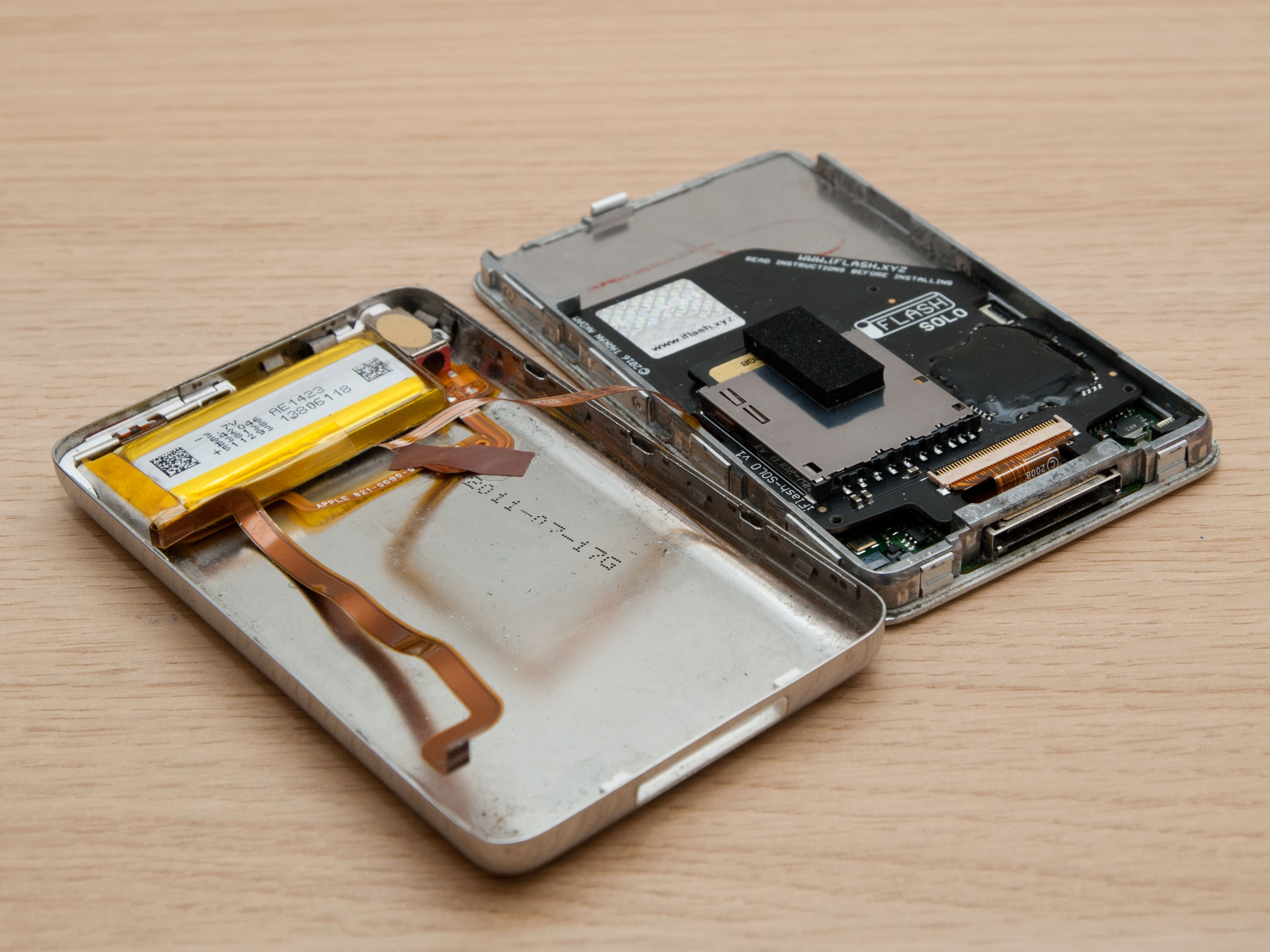

Installation Complete
-
-

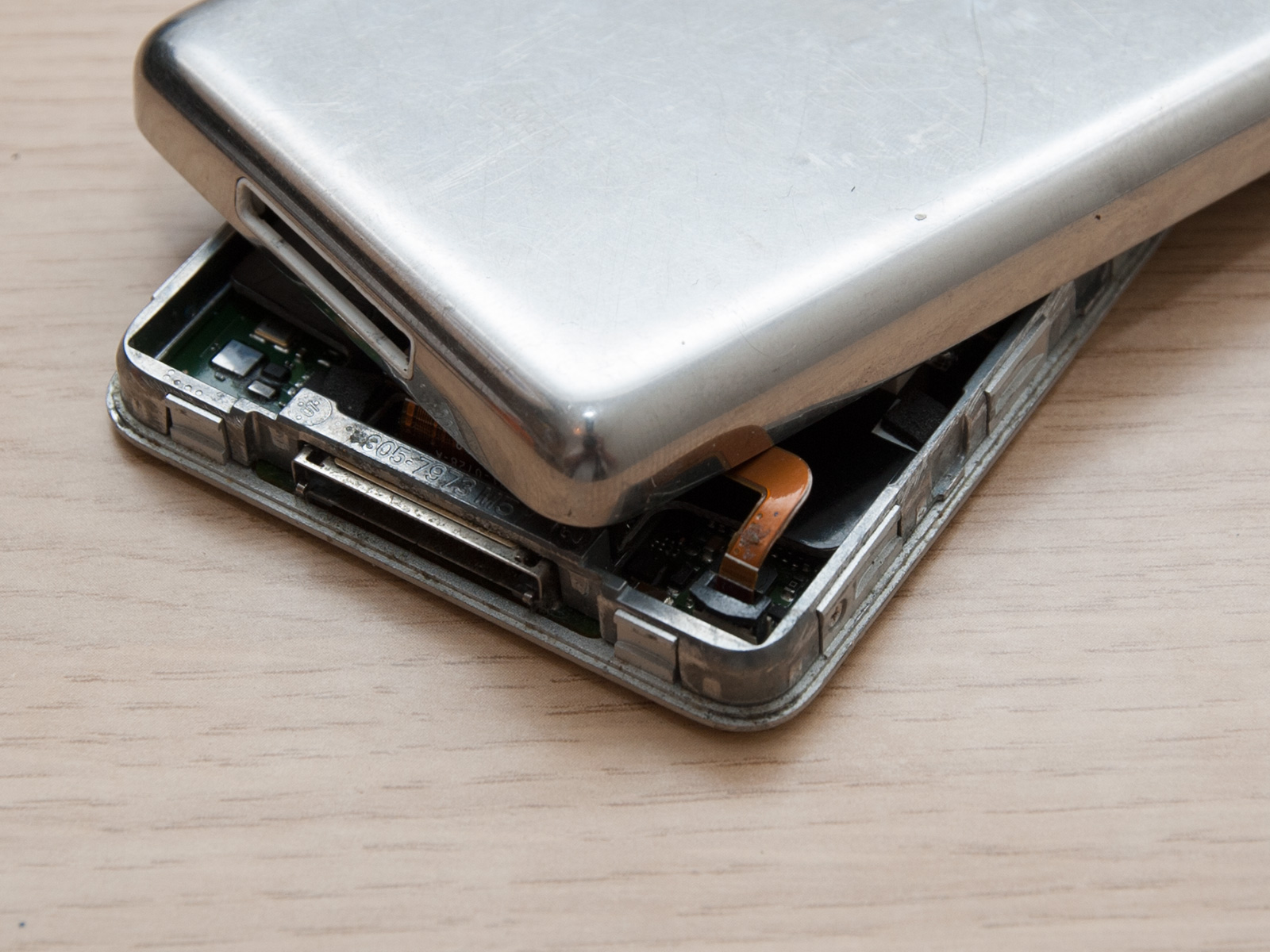

Slide battery cable in to the connector and push down the black latch to lock the ribbon in place.
Refit battery ribbon
-
-
iPod is now ready to restore & sync using iTunes.
Ready to restore
SD Cards
User Reported working SD cards (updated: 29th August 2024)
General Notes:
All modern UHS-I U1 and U3 cards will generally work ok. We suggest buying the fastest card in your budget as they tend to have faster access times and better quality memory chips.
Tip: MicroSD market is full of fake and mislabeled cards – try to purchase cards which the seller has obtained directly from the manufacturer. Be wary of cheap, high capacity cards – If it looks too good to be true – then it is fake! We always suggest testing the SD card fully using something like H2Testw.
Fullsize SD (SDXC) cards reported by iFlash users :
| Manufacturer / Brand |
Model / Specification |
Reported Capacities |
Notes |
| 7DayShop |
Rapid-Pro Class 10 / UHS-I |
64GB, 128GB |
|
| Integral |
Ultima Pro UHS-I (U3) V30 |
256GB |
|
| Kingston |
SDA10 UHS-I (U1) |
128GB, 256GB, 512GB |
Some reports of skipping / faulty cards |
| Komputerbay |
Professional UHS-I (U3) / 600x |
128GB, 256GB |
|
| Lexar |
Professional 400x UHS-I |
64GB, 128GB, 256GB |
|
| Lexar |
Professional 600x/633x UHS-I (U1) & (U3) |
256GB, 512GB |
|
| Lexar |
Professional 1000x UHS-II (U3) |
256GB |
|
| Patriot |
LX & EX Series Class 10 / UHS-I |
128GB |
|
| PNY |
Elite Performance UHS-I (U1) |
64GB, 128GB |
|
| PNY |
Elite Performance UHS-I (U3) |
128GB, 256GB, 512GB |
|
| PNY |
High Performance UHS-I (U1) |
128GB, 256GB |
|
| Qumox |
Class 10 / UHS-I |
64GB, 128GB |
|
| Sandisk |
Extreme UHS-I (U3) |
64GB, 128GB, 256GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) |
64GB, 128GB, 256GB, 512GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) A2 V30 (200MB/s) |
128GB,512GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model |
| Sandisk |
Ultra |
64GB |
Not working on 4th Gen – Unable to restore. |
| Sandisk |
Ultra U1, C10, V10 (140MB/s) |
128GB |
Reports of skipping / Red X on 6g and 7g iPods |
| Sony |
High Speed SF-G2UX2 UHS-I (U3) |
256GB |
|
| Transcend |
Class 10 / UHS-I 600x |
64GB, 128GB |
Some reports of skipping / faulty cards |
MicroSD (SDXC) cards reported by iFlash users :
| Manufacturer / Brand |
Model / Specification |
Reported Capacities |
Notes |
| Integral |
Ultima PRO UHS-I (U3) A1 V30 |
64GB, 128GB, 256GB, 512GB |
|
| Kingston |
Canvas Select Plus UHS-I (U3) A1 V30 |
512GB |
|
| Kingston |
Canvas Go Plus UHS-I (U3) A2 V30 |
256GB |
|
| Lexar |
High Performance 633x UHS-I (U3) A2 V30 |
512GB |
|
| Lexar |
Professional 1066x UHS-I (U3) A2 |
128GB, 256GB |
|
| MyMemory |
Premium PRO UHS-I (U3) A1 V30 |
512GB |
|
| Patriot |
LX Series UHS-I (U1) |
128GB |
|
| PNY |
Elite P-SDU128U185EL UHS-I (U1) |
128GB |
|
| Samsung |
EVO UHS-I (U1) |
64GB, 128GB, 256GB |
|
| Samsung |
EVO Select (Green) UHS-I (U3) |
512GB |
|
| Samsung |
EVO Select (Blue) UHS-I (U3) A2 V30 |
128GB,256GB, 512GB |
|
| Samsung |
PRO Plus (Purple) UHS-I (U3) A2 V30 |
128GB |
|
| Sandisk |
General Notes about Sandisk |
Various Models & Capacities |
Reports of Sandisk cards causing RED X when more than one used in the iFlash-Quad. Cards will work installed one at a time, but more than one causes RED X. |
| Sandisk |
Extreme UHS-I (U3) A2 V30 |
128Gb, 256Gb, 400Gb, 1TB (1024GB) |
Reports of possible track skipping / faulty cards (Red/Gold cards) |
| Sandisk |
Extreme Plus UHS-I (U3) A2 V30 |
256GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) A2 V30 |
32GB, 128GB, 512GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model |
| Sandisk |
Ultra UHS-I (U1) A1 |
64GB, 128GB, 200GB, 400GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model
|
| Toshiba |
Exceria UHS-I |
128GB |
Slow write speeds – so longer sync times! |
| Transcend |
UHS-I (U1) |
128GB |
|
