iFlash-Sata

Name: iFlash-Sata
SKU: mSATA
Availability: InStock

mSata Adapter for the iPod

For those seeking maximum storage capabilities for their iPod, the iFlash-Sata allows you to install and use the latest and largest mSata based storage devices.

While power consumption is higher than SDXC, on a price per Gb, it is the only way to achieve affordable 256Gb to 1Tb iPod.

iFlash-Sata v7 Front View

iFlash-Sata v7 Zif View

iFlash-Sata v7 Angle View

Features

Thin profile – only 5mm thick with the mSata drive installed
Ultra low jitter Japanese made clock module – reduce errors and noise on the Sata bus
Pi Filter – stop induced noise from the mSata affecting sound quality
DDK Zif Connector – Gold plated and perfectly matches the Apple HDD Ribbon

Compatibility

IMPORTANT: Read iFlash Compatibility Chart for iPod model specific limitations

iPod 5g Video 30Gb, 60Gb
iPod 5.5g Video 30Gb, 80Gb
iPod 6g Classic 80Gb, 120Gb, 160Gb *Limit of 128Gb with mSata
iPod 7g Classic 160Gb (late 2009)

Installation

Installation Guide (click on images for detailed instructions)

: Using suitable tools, release the holding clips, making your way around the case till it opens. I suggest watching some iPod opening videos on the internet.

: Rest the front and back side by side, be careful to not cause too much stress on the headphone ribbon.

: Before pulling the case apart, release the battery cable – lift the black lock bar -or- gently using even pressure pull up the battery ribbon away from the connector.

: Lift and flip back the hard drive. Gently lift the black bar to release the ribbon from the HDD.

: Remove all rubber bumpers and strips from the iPods if any remain after the HDD is removed. iPod is ready to accept the iFlash board.

: Install iFlash-Sata board in to iPod, Make sure ribbon is fully home and the black bar is locked down.

: Insert the mSata drive fully in to the connector at an angle, then gently push down till it locks on the iFlash-Sata.

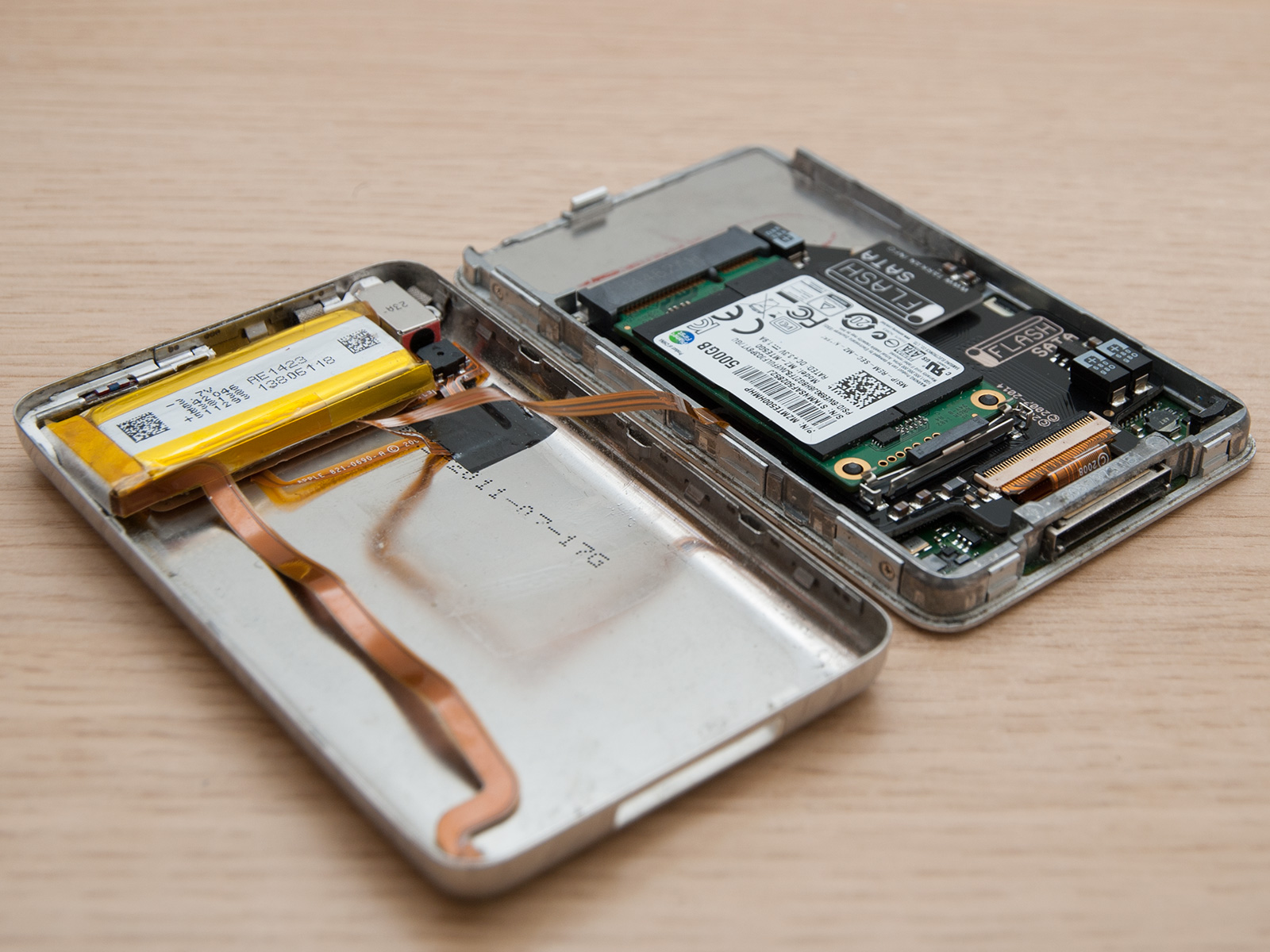

: The iFlash-Sata is now installed.

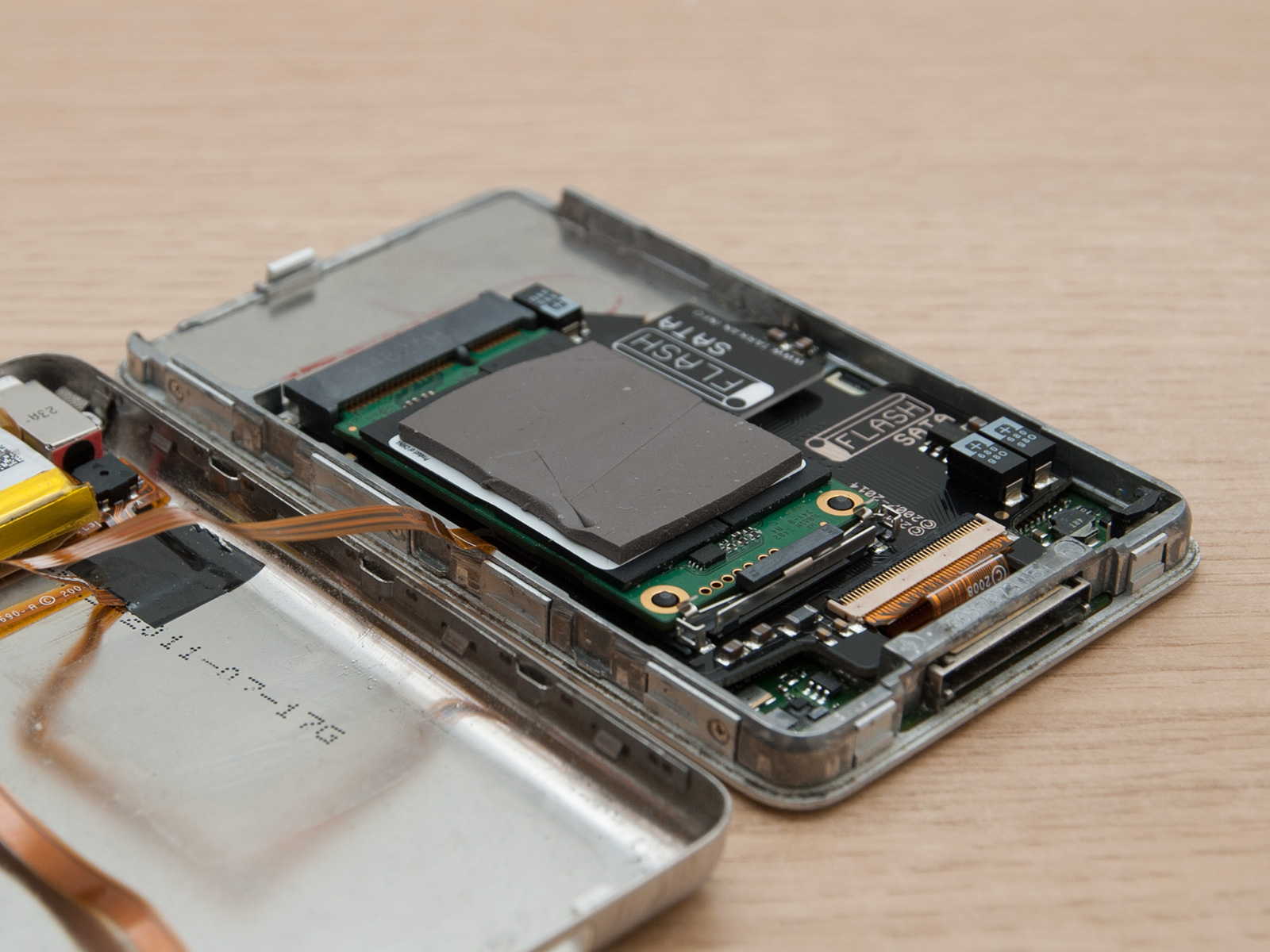

: Remove the protective outer sheets from the thermal gap filler before placing on top of the mSata drive. Fold the piece in half for thick case back iPods.
