Description

iFlash-QUAD

Name: iFlash-Quad
SKU: QUAD
Availability: InStock

Quad MicroSD Adapter for the iPod

For those seeking solid state storage capabilities for their iPod, the iFlash-Quad allows you to install and use MicroSD cards.

Automatic quad mode adapter – use with 1 MicroSD card in standard mode and 2 or 3 or 4 MicroSD cards in mixed JBOD (Just a Bunch Of Disks) mode for even greater storage capacity.

Mix and Match any MicroSD cards, you are free to mix any size and any brand to achieve your iPod needs (see known working list for recommended cards).

Intelligent power management with much lower power consumption than the original Hard drive, longer runtimes and quicker user interface.

Simple plug & play installation – iPod works as before just much better !

iFlash-Quad Angle

iFlash-Quad Side

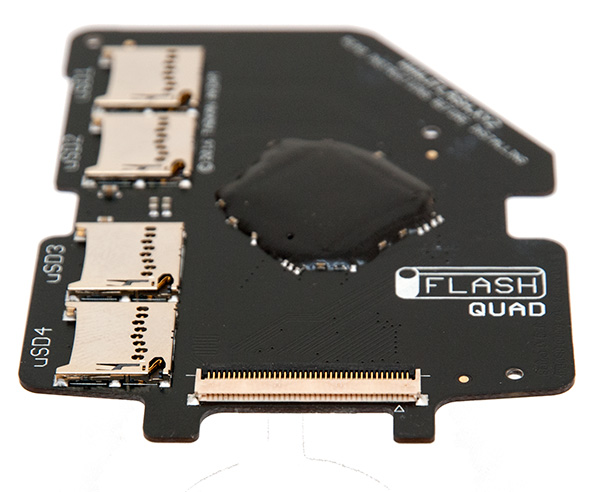

iFlash-Quad Bottom

Features

Thin profile – only 2mm thick
Quad Mode Adapter – use 1 or 2 or 3 or 4 MicroSD cards to fit with your storage requirements
DDK Zif Connector – Gold plated and perfectly matches the Apple HDD Ribbon
SMK MicroSD – High quality Japanese made connectors
SD / SDHC / SDXC / UHS-1 U1 & U3 Card Compatible

Compatibility

IMPORTANT: Read iFlash Compatibility Chart for iPod model specific limitations

iPod 5g Video 30Gb, 60Gb
iPod 5.5g Video 30Gb, 80Gb
iPod 6g Classic 80Gb, 120Gb, 160Gb *Limit of 128Gb with SD cards
iPod 7g Classic 160Gb (late 2009)
For fitting in to 4g iPods you will require an iFlash converter

Installation

Installation Guide

: Using suitable tools, release the holding clips, making your way around the case till it opens. I suggest watching some iPod opening videos on the internet.

: Before pulling the case apart, release the battery cable – lift the black lock bar -or- gently using even pressure pull up the battery ribbon away from the connector.

: Rest the front and back side by side, be careful to not cause too much stress on the headphone ribbon.

: Lift and flip back the hard drive. Gently lift the black bar to release the ribbon from the HDD.

: Remove all rubber bumpers and strips from the iPods if any remain after the HDD is removed. iPod is ready to accept the iFlash board.

: Install MicroSD card(s) in to the iFlash-Quad, If not using 4 MicroSD cards then load from slot uSD1 up.

: Install iFlash-Quad into iPod, making sure the ribbon is fully home and the black bar is locked down.

: Place supplied foam pad on to the chipset, use both if fitting in to a thick caseback.

: Slide battery cable in to the connector and push down the black latch to lock the ribbon in place.

: iPod is now ready to restore & sync using iTunes.

SD Cards

User Reported working SD cards (updated: 29th August 2024)

General Notes:

All modern UHS-I U1 and U3 cards will generally work ok. We suggest buying the fastest card in your budget as they tend to have faster access times and better quality memory chips.

Tip: MicroSD market is full of fake and mislabeled cards – try to purchase cards which the seller has obtained directly from the manufacturer. Be wary of cheap, high capacity cards – If it looks too good to be true – then it is fake! We always suggest testing the SD card fully using something like H2Testw.

Fullsize SD (SDXC) cards reported by iFlash users :

Manufacturer / Brand	Model / Specification	Reported Capacities	Notes
7DayShop	Rapid-Pro Class 10 / UHS-I	64GB, 128GB
Integral	Ultima Pro UHS-I (U3) V30	256GB
Kingston	SDA10 UHS-I (U1)	128GB, 256GB, 512GB	Some reports of skipping / faulty cards
Komputerbay	Professional UHS-I (U3) / 600x	128GB, 256GB
Lexar	Professional 400x UHS-I	64GB, 128GB, 256GB
Lexar	Professional 600x/633x UHS-I (U1) & (U3)	256GB, 512GB
Lexar	Professional 1000x UHS-II (U3)	256GB
Patriot	LX & EX Series Class 10 / UHS-I	128GB
PNY	Elite Performance UHS-I (U1)	64GB, 128GB
PNY	Elite Performance UHS-I (U3)	128GB, 256GB, 512GB
PNY	High Performance UHS-I (U1)	128GB, 256GB
Qumox	Class 10 / UHS-I	64GB, 128GB
Sandisk	Extreme UHS-I (U3)	64GB, 128GB, 256GB
Sandisk	Extreme Pro UHS-I (U3)	64GB, 128GB, 256GB, 512GB
Sandisk	Extreme Pro UHS-I (U3) A2 V30 (200MB/s)	128GB,512GB	Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model
Sandisk	Ultra	64GB	Not working on 4th Gen – Unable to restore.
Sandisk	Ultra U1, C10, V10 (140MB/s)	128GB	Reports of skipping / Red X on 6g and 7g iPods
Sony	High Speed SF-G2UX2 UHS-I (U3)	256GB
Transcend	Class 10 / UHS-I 600x	64GB, 128GB	Some reports of skipping / faulty cards

MicroSD (SDXC) cards reported by iFlash users :

Manufacturer / Brand	Model / Specification	Reported Capacities	Notes
Integral	Ultima PRO UHS-I (U3) A1 V30	64GB, 128GB, 256GB, 512GB
Kingston	Canvas Select Plus UHS-I (U3) A1 V30	512GB
Kingston	Canvas Go Plus UHS-I (U3) A2 V30	256GB
Lexar	High Performance 633x UHS-I (U3) A2 V30	512GB
Lexar	Professional 1066x UHS-I (U3) A2	128GB, 256GB
MyMemory	Premium PRO UHS-I (U3) A1 V30	512GB
Patriot	LX Series UHS-I (U1)	128GB
PNY	Elite P-SDU128U185EL UHS-I (U1)	128GB
Samsung	EVO UHS-I (U1)	64GB, 128GB, 256GB
Samsung	EVO Select (Green) UHS-I (U3)	512GB
Samsung	EVO Select (Blue) UHS-I (U3) A2 V30	128GB,256GB, 512GB
Samsung	PRO Plus (Purple) UHS-I (U3) A2 V30	128GB
Sandisk	General Notes about Sandisk	Various Models & Capacities	Reports of Sandisk cards causing RED X when more than one used in the iFlash-Quad. Cards will work installed one at a time, but more than one causes RED X.
Sandisk	Extreme UHS-I (U3) A2 V30	128Gb, 256Gb, 400Gb, 1TB (1024GB)	Reports of possible track skipping / faulty cards (Red/Gold cards)
Sandisk	Extreme Plus UHS-I (U3) A2 V30	256GB
Sandisk	Extreme Pro UHS-I (U3) A2 V30	32GB, 128GB, 512GB	Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model
Sandisk	Ultra UHS-I (U1) A1	64GB, 128GB, 200GB, 400GB	Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model
Toshiba	Exceria UHS-I	128GB	Slow write speeds – so longer sync times!
Transcend	UHS-I (U1)	128GB
