Description
iFlash-DUAL
Dual SDXC Adapter for the iPod
For those seeking solid state storage capabilities for their iPod, the iFlash-DUAL allows you to install and use SD/SDHC/SDXC cards.
Automatic Dual mode adapter – use with 1 SD card in standard mode -or- 2 SD cards in mixed JBOD (Just a Bunch Of Disks) mode for even greater storage capacity.
Mix and Match any two SD cards, you are free to mix any size and any brand to achieve your iPod needs (see known working list for recommended cards).
Intelligent power management with much lower power consumption than the original Hard drive, longer runtimes and quicker user interface.

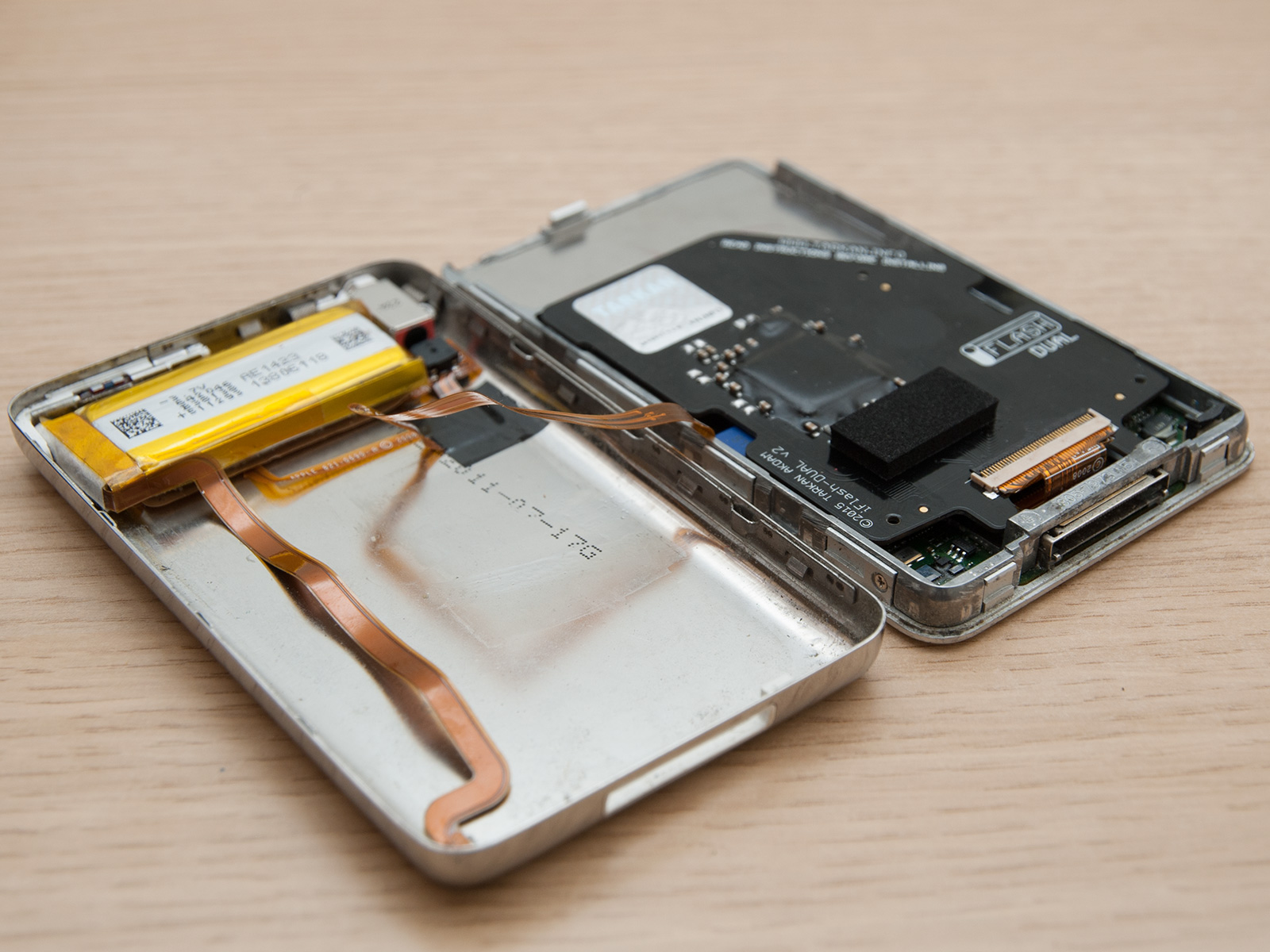

Simple plug & play installation – iPod works as before just much better !
iFlash-Dual Zif View

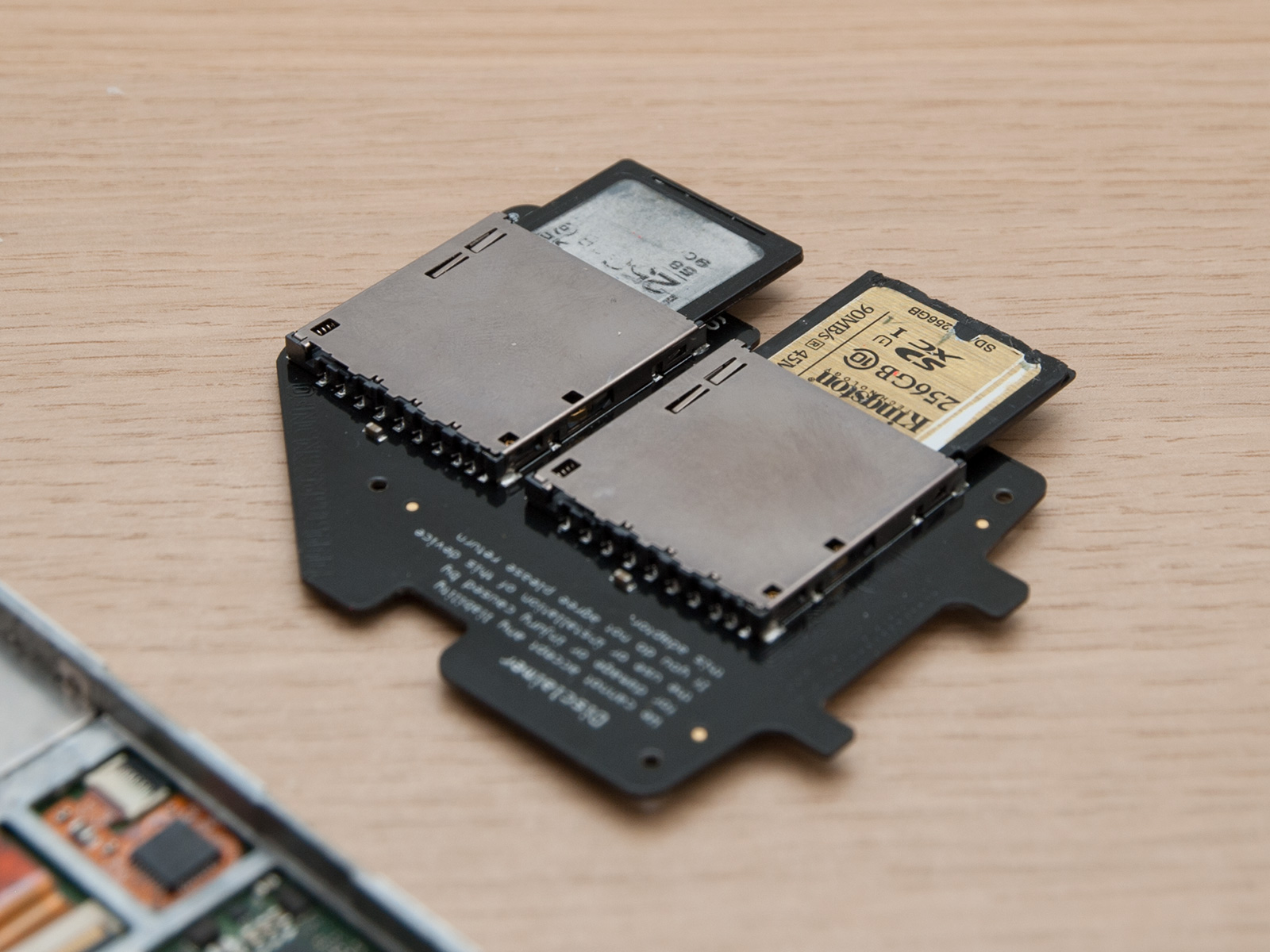

iFlash-Dual SD Slots
iFlash-Dual Angle View
Features
- Thin profile – only 5mm thick, same as the original hard drive
- Dual Mode Adapter – use 1 or 2 SD cards to fit with your storage requirements
- DDK Zif Connector – Gold plated and perfectly matches the Apple HDD Ribbon
- Yamaichi SD Connectors – High quality Japanese made SD Connectors
- SD / SDHC / SDXC / UHS-1 U1 & U3 Card Compatible
Compatibility
IMPORTANT: Read iFlash Compatibility Chart for iPod model specific limitations
- iPod 5g Video 30Gb, 60Gb
- iPod 5.5g Video 30Gb, 80Gb
- iPod 6g Classic 80Gb, 120Gb, 160Gb *Limit of 128Gb with SD cards
- iPod 7g Classic 160Gb (late 2009)
- For fitting in to 4g iPods you will require an iFlash converter
SD Cards
User Reported working SD cards (updated: 29th August 2024)
General Notes:
All modern UHS-I U1 and U3 cards will generally work ok. We suggest buying the fastest card in your budget as they tend to have faster access times and better quality memory chips.
Tip: MicroSD market is full of fake and mislabeled cards – try to purchase cards which the seller has obtained directly from the manufacturer. Be wary of cheap, high capacity cards – If it looks too good to be true – then it is fake! We always suggest testing the SD card fully using something like H2Testw.
Fullsize SD (SDXC) cards reported by iFlash users :
| Manufacturer / Brand |
Model / Specification |
Reported Capacities |
Notes |
| 7DayShop |
Rapid-Pro Class 10 / UHS-I |
64GB, 128GB |
|
| Integral |
Ultima Pro UHS-I (U3) V30 |
256GB |
|
| Kingston |
SDA10 UHS-I (U1) |
128GB, 256GB, 512GB |
Some reports of skipping / faulty cards |
| Komputerbay |
Professional UHS-I (U3) / 600x |
128GB, 256GB |
|
| Lexar |
Professional 400x UHS-I |
64GB, 128GB, 256GB |
|
| Lexar |
Professional 600x/633x UHS-I (U1) & (U3) |
256GB, 512GB |
|
| Lexar |
Professional 1000x UHS-II (U3) |
256GB |
|
| Patriot |
LX & EX Series Class 10 / UHS-I |
128GB |
|
| PNY |
Elite Performance UHS-I (U1) |
64GB, 128GB |
|
| PNY |
Elite Performance UHS-I (U3) |
128GB, 256GB, 512GB |
|
| PNY |
High Performance UHS-I (U1) |
128GB, 256GB |
|
| Qumox |
Class 10 / UHS-I |
64GB, 128GB |
|
| Sandisk |
Extreme UHS-I (U3) |
64GB, 128GB, 256GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) |
64GB, 128GB, 256GB, 512GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) A2 V30 (200MB/s) |
128GB,512GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model |
| Sandisk |
Ultra |
64GB |
Not working on 4th Gen – Unable to restore. |
| Sandisk |
Ultra U1, C10, V10 (140MB/s) |
128GB |
Reports of skipping / Red X on 6g and 7g iPods |
| Sony |
High Speed SF-G2UX2 UHS-I (U3) |
256GB |
|
| Transcend |
Class 10 / UHS-I 600x |
64GB, 128GB |
Some reports of skipping / faulty cards |
MicroSD (SDXC) cards reported by iFlash users :
| Manufacturer / Brand |
Model / Specification |
Reported Capacities |
Notes |
| Integral |
Ultima PRO UHS-I (U3) A1 V30 |
64GB, 128GB, 256GB, 512GB |
|
| Kingston |
Canvas Select Plus UHS-I (U3) A1 V30 |
512GB |
|
| Kingston |
Canvas Go Plus UHS-I (U3) A2 V30 |
256GB |
|
| Lexar |
High Performance 633x UHS-I (U3) A2 V30 |
512GB |
|
| Lexar |
Professional 1066x UHS-I (U3) A2 |
128GB, 256GB |
|
| MyMemory |
Premium PRO UHS-I (U3) A1 V30 |
512GB |
|
| Patriot |
LX Series UHS-I (U1) |
128GB |
|
| PNY |
Elite P-SDU128U185EL UHS-I (U1) |
128GB |
|
| Samsung |
EVO UHS-I (U1) |
64GB, 128GB, 256GB |
|
| Samsung |
EVO Select (Green) UHS-I (U3) |
512GB |
|
| Samsung |
EVO Select (Blue) UHS-I (U3) A2 V30 |
128GB,256GB, 512GB |
|
| Samsung |
PRO Plus (Purple) UHS-I (U3) A2 V30 |
128GB |
|
| Sandisk |
General Notes about Sandisk |
Various Models & Capacities |
Reports of Sandisk cards causing RED X when more than one used in the iFlash-Quad. Cards will work installed one at a time, but more than one causes RED X. |
| Sandisk |
Extreme UHS-I (U3) A2 V30 |
128Gb, 256Gb, 400Gb, 1TB (1024GB) |
Reports of possible track skipping / faulty cards (Red/Gold cards) |
| Sandisk |
Extreme Plus UHS-I (U3) A2 V30 |
256GB |
|
| Sandisk |
Extreme Pro UHS-I (U3) A2 V30 |
32GB, 128GB, 512GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model |
| Sandisk |
Ultra UHS-I (U1) A1 |
64GB, 128GB, 200GB, 400GB |
Some cards cause RED X on iPod 6g & 7g – get card exchanged or try another model
|
| Toshiba |
Exceria UHS-I |
128GB |
Slow write speeds – so longer sync times! |
| Transcend |
UHS-I (U1) |
128GB |
|
